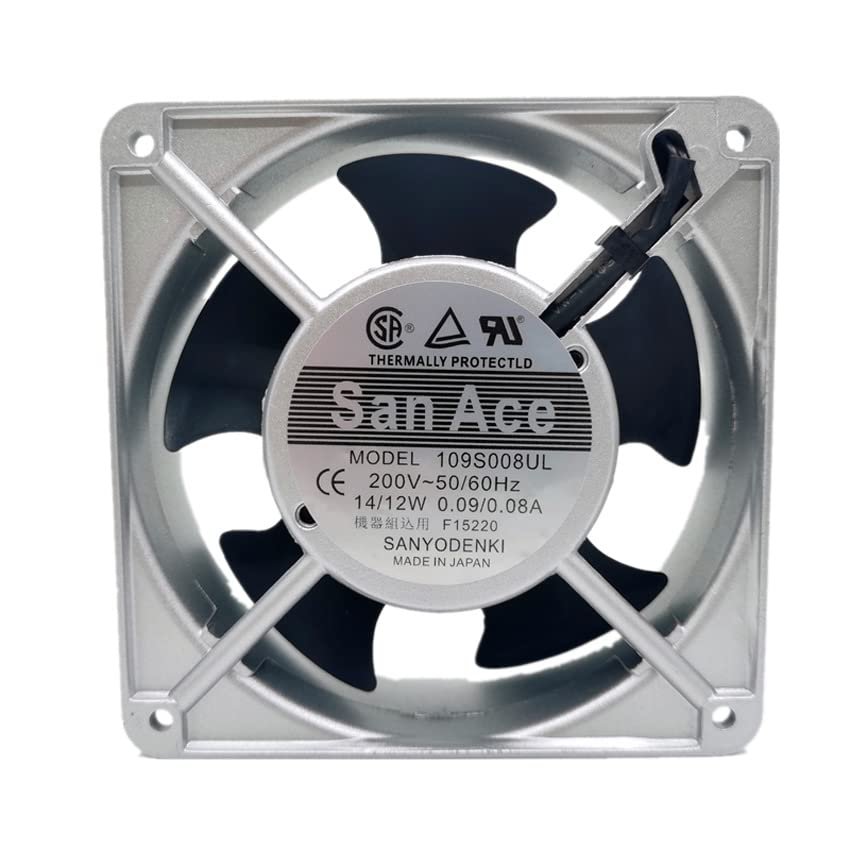

109S008UL 200V AC 14W Welding Machine Axial Fan 12cm Cabinet Industrial Cooling Fan

Description

• Rated voltage: 200V AC, rated current: 0.08/0.07A
• Manufacturer Part Number: 109S008UL
• Heatsink Material: Copper / Aluminum Alloy, Bearing Shape: Double Ball
• Product specifications: 120 x 120 x 38mm (12038)
• Extended life of 50,000 hours, noise sound: 43.3 dBA

109S008UL 200V AC 14W Welding Machine Axial Fan 12cm Cabinet Industrial Cooling Fan
Product Model: 109S008UL
Square type size : 120*120*38mm
Rated Voltage: 200V
Frequency: 50/60HZ
Rated current rated current) 0.09/0.08A
Rated input (rated power): 14/12W
Ratedspeed 3100min-1
Air flow: 95.4CFM
Air flow (maximum air volume) 2.7m3/min
Static pressure maximum static pressure 55.9/65.7Pa
Noise: 40/43dB (A)
Mass: 550g
Rotation direction: anti-clockwise when viewed from the rotor
Bearing structure: maintenance-free double ball bearings
Insulation class: 42DBA
Temperature range: -10.60. C
Material frame: aluminum casting
Blade: Polycarbonate (Flammability Class V-O)
Anti-burning ring device: built-in thermal protection device
The product life can achieve continuous operation of more than 200,000 hours, which is suitable for cooling equipment that requires long-term maintenance-free operation.
Can be used for communication equipment, servers, various industrial equipment, etc.
