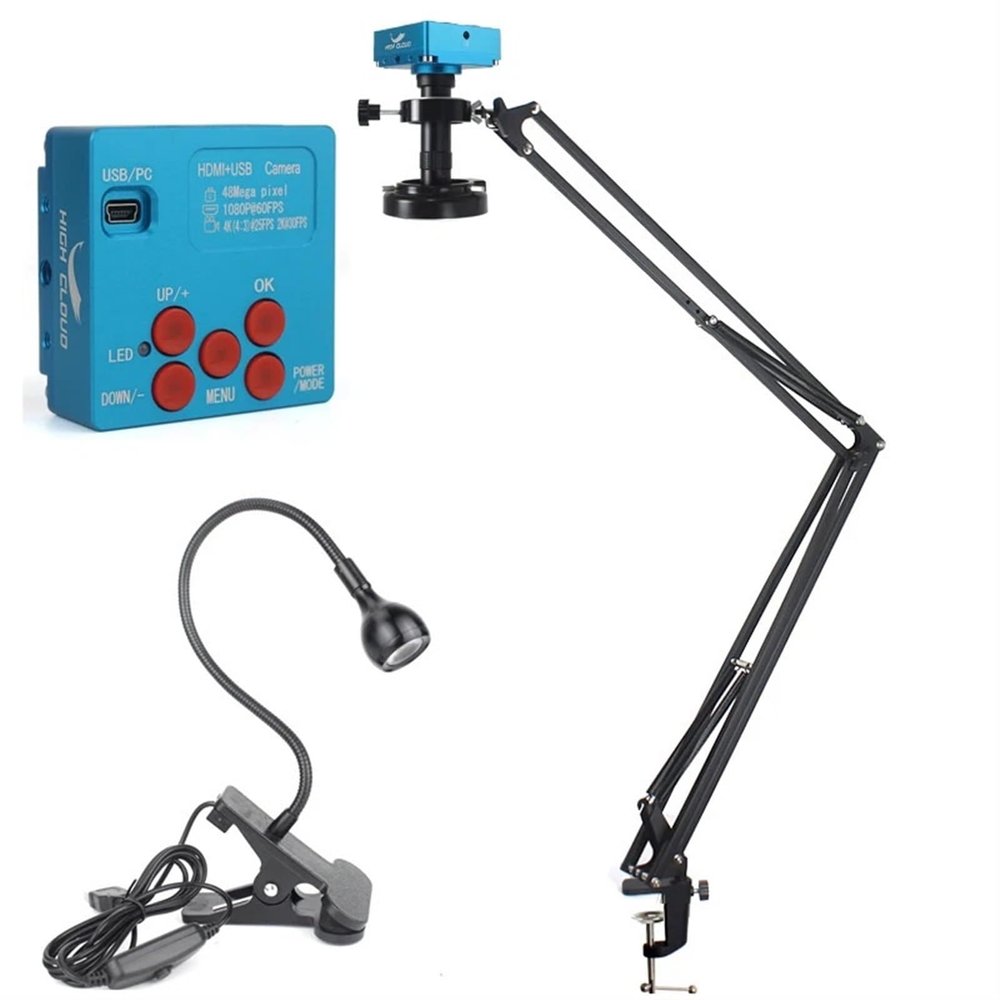

LIUZHENZHEN 48MP 4K HDMI USB Industrial Video Microscope Digital Microscope Camera 130X Zoom C Mount Lens for Phone Repair Soldering Tools(D Stand 510mm)

Description

• 48MP 4K HDMI USB digital microscope camera
• 130X zoom for detailed inspection and analysis
• Compatible with C mount lens for versatile applications
• Ideal for phone repair and soldering tools
• Professional-grade industrial video microscope for precision work

Specification:
High Quality, High Resolution, Clear Images
Picture Pixel:48M
Sensor: SONO 2.33 inch 48MP
Image resolution: 19201080 (for HDMI), 19201080 (for USB)
Video resolution: 4K(4:3) 28802160 @25 FPS
19201080@60F/S Video Camera
Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
TF Card: Video Recorder
Grid line:8 horizontal lines, 8 vertical lines
Video Frame Rate:60FPS@1920x1080 24FPS@2K 60FPS@720P
25FPS@4K
Model: Camera with HDMI USB two output
TF card:4GB (Up to 32GB max)
Cross line:Overlap or Cancel
CMOS pixel:1.33um x 1.33um
Lens jack:C-mount
Color setting:Auto
Power:12V/1A
White balance:Auto/one button calibration/Manual
Size:64x64x35mm
EV:Auto/Manual
Weight:180g
Language:Chinese, English
Camera mode:HDMI output 1080P @60 FPS
Working temperature:0-70
1X-130X C-MOUNT Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.13- 2X (about 1 - 130X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g
56 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Working distance:100mm
Package incluede :
1 x Camera
1 x Power Supply
1 x HDMI Line
1 x IR Remote control
1 x 130X C-mount Lens
1 x LED Light
1 x Bracket(Multiple specifications Bracket selection)
