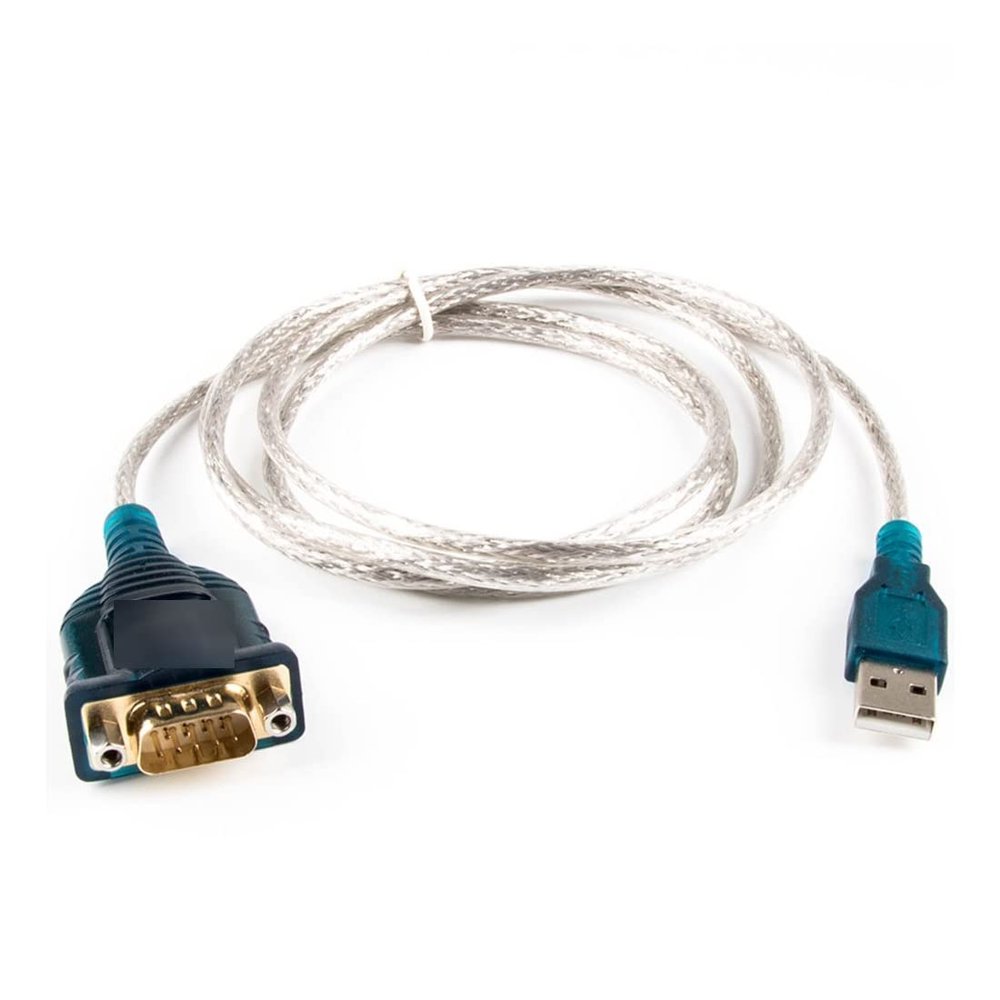

AJOHBM USB to DB9 RS232 Serial Adapter 9 Pin Male to COM Port Chip Computer PC Converter Cable Support Win10/8/7/M/Vista

Description

• USB RS232 adapter cable usb rs232 serial cable overmolded
• full pinout Compatible With POS, scanner, barcoder, modem, etc
• Support Win 7, Win 8, 8.1, 10, Android, M, Linux etc
• It can make your mobile, laptop, notebook, portable pc with a extenal COM port!!!
• FT232R usb rs232 adapter cable is 1.0mtr

USB to DB9 RS232 Serial Adapter Cable 9 Pin Male to COM port Chip computer PC Converter Cable Support Win10/8/7/M/vista 3.2ft
USB RS232 adapter cable usb rs232 serial cable overmolded
full pinout Compatible With POS, scanner, barcoder, modem, etc
Support Win 7, Win 8, 8.1, 10, Android, M, Linux etc
It can make your mobile, laptop, notebook, portable pc with a extenal COM port!!!
FT232R usb rs232 adapter cable is 1.0mtr
FT232RL+ZT213 chip
USB2.0 RS232 to DB9 full pinout
DB9 male pinout:1-DCD, 2-RXD, 3-TXD, 4-DTR, 5-GND,6-DSR,7-RTS,8-CTS,9-RI
USB RS232 COM port converter cable
USB serial adapter cable
usb-COM232 adapter cable
USB RS232 DB9 male cable
USB specification 2.0 compliant, full speed(12Mbps)
USB suspend states supported via SUSPEND pins
All handshaking and modem interface signals
Data formates supported: Data bit: 5, 6, 7, and 8, Stope bits: 1, 1.5. and 2.
Parity: odd, even, mark, space, no parity
Baud rates: 300bps to 1 Mbits
576 byte receive buffer; 640 byte transmit uffer
Hardware or X-On/X-Off handshaking supported
Even character support
Line break transmission
24/28AWG with braid Compatible With shielding, OD=4.0mm
Update serial PLC, modem to usb, bar coder reader, scaner, etc
Compatible PC serial power level
Support Windows 7/Win8, Win 8.1/10/XP/9X/2000, Linux,M,etc
With DB9 full pinout:
About FT232RL
The FT232R is the latest device to be added to FTDI?s range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID? security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.
The FT232R adds two new functions compared with its pred
