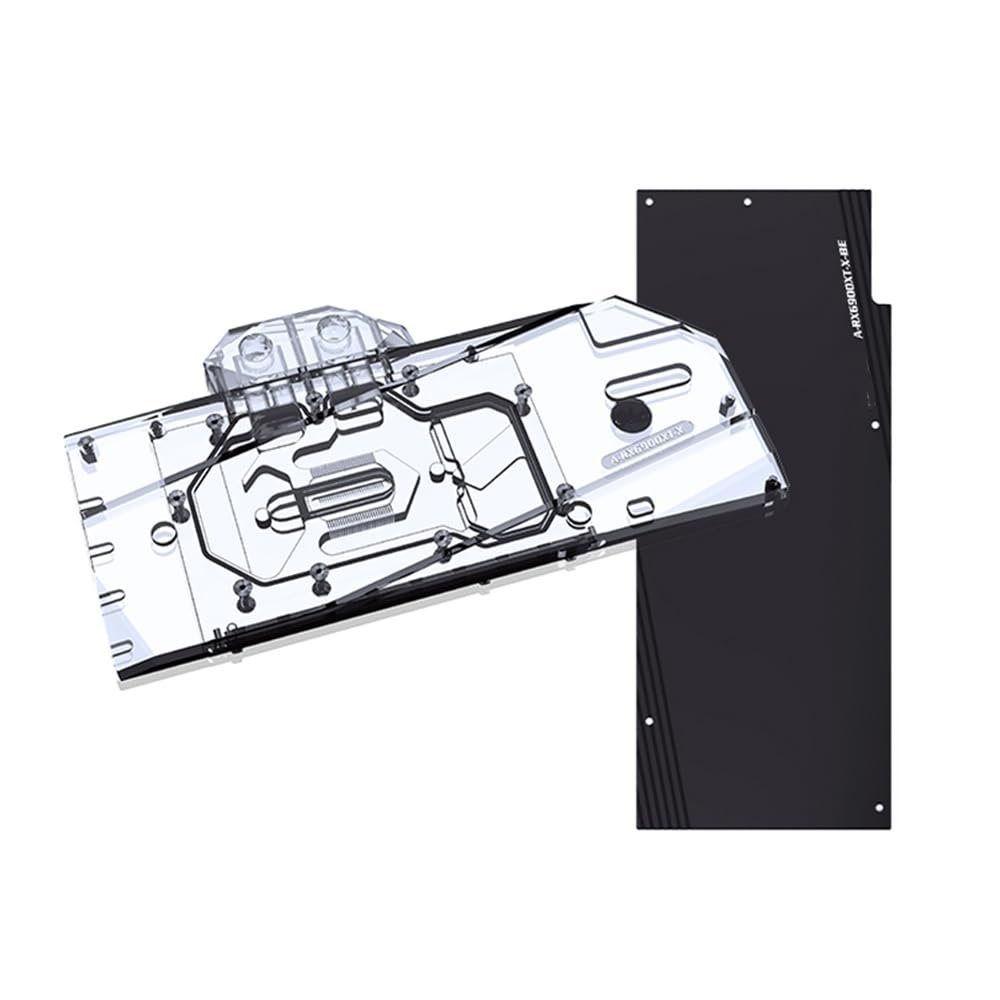

GPU Water Block Use for AMD RX6800/6800XT/6900XT Reference Edition Graphics Card - Copper GPU Water Cooling Block with Metal Backplate/RGB Aura 5V RBW

Description

• The GPU water block is compatible with AMD RX6800/RX6800XT/RX6900XT Reference Edition Graphics Cards (for detailed model information, please refer to the compatibility list). Please check the PCB picture to ensure compatibility. Avoid buying mistakes, or contact the seller.
• Use Copper substrate with excellent thermal conductivity, sprayed with micro-channel (0.3mm) structure, large-flow MOS water channel, fast cooling speed, and large water coverage area. Bottom is copper, cover is acrylic, all holes are G1/4 thread.
• The T2 (401W/MK) copper plate of the GPU water block covers the graphics card core (GPU), video memory (RAM) and voltage regulator module (VRM). High-quality, high-performance heat sink copper block. Better cooling effect performance.
• The water-cooled head is equipped with exclusive backplate, high-quality aluminum material, frosted texture process, upper and lower sandwich type installation, playing a comprehensive protection role.
• To reduce the weight of the water block and prevent PCB deformation, a nickel-plating surface treatment process is employed. With a coating thickness of just 0.001-0.002 millimeters, this reduces thermal resistance while also providing more effective corrosion protection.

Compatible list: (Including but not limited to the following models) Compatible for AMD Radeon RX6900XT Reference Edition GPU Card Compatible for AMD Radeon RX6800XT Reference Edition GPU Card Compatible for AMD Radeon RX6800 Reference Edition GPU Card Compatible for Yeston RX 6800 XT GPU Card Product parameters: Product number:A-RX6900XT-X Color: Transparent Thread: G1/4" Material: Aluminum+ Copper +Acrylic Dimensions: Reference size chart Process: electroplating/polishing Water channel: 0.5mm jet type Applicable: Suitable for desktop computer graphics card cooling Parts List: Adapter/backplane screw/spring screw/insulation spacer/spacer column/thermal paste/plug Purchase information 1. Please carefully check the PCB diagram, check the detailed model of the graphics card to ensure compatibility, or confirm that your graphics card is in the compatibility list, otherwise it may not be installed normally. If you are not sure, please feel free to contact us. 2.Please pay attention to the inlet and outletposition of water block when installing,otherwise installation errors will affect the efficiency of heat dissipation; 3.The light adapter cable should be connected to the corresponding motherboard interface in the corresponding direction. The B-CNTR-95X4L adapter cable can only be connected to the motherboard 12V 4-pin interface: the B-CNTR-95X3L adapter cable can only be connected to the motherboard 5V RBW (A-RGB) 3-pin interface. 4.The use of alcoholic coolant is prohibited.
