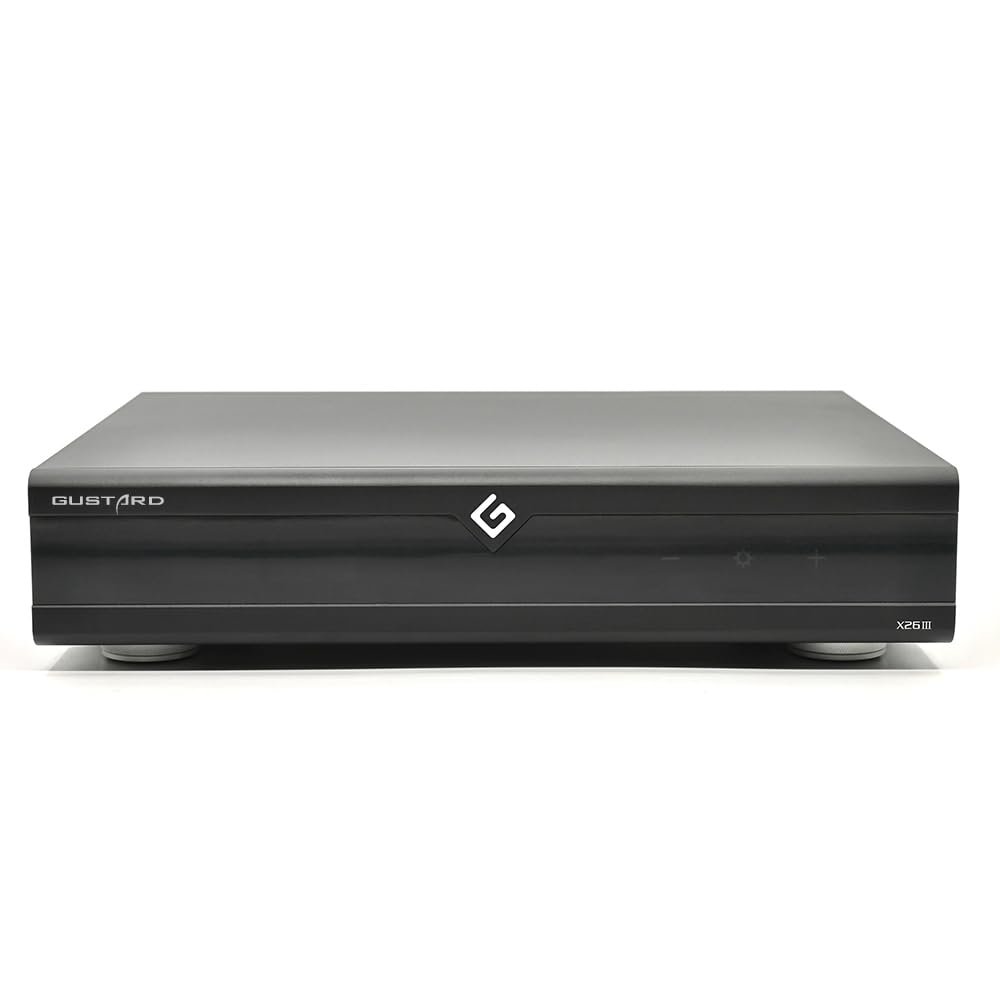

Gustard DAC-X26III DAC Network Streaming Decoder Double ES9039SPRO DSD512 PCM768 MQA with Remote Control (Black)

Description

• ES9039SPRO X2Using two ESS flagship chips ES9039SPRO for Digital to Analog Conversion,1chip each for left and right channel. With two completely independent power supply and grounding to seal the great sound performance.
• DSP Digital FilterA high-performance digital filter solution developed on the Analog Device SHARC digital audio-specific DSP platform with the primary objective of reducing audio in-band aliasing noise in the digital domain.This filter enhances the sound quality by upscaling and noise shaping the raw digital audio stream signal. The anti-aliasing noise algorithm and high-precision floating-point 64bit operation used in this program are the key technical points.
• FPGA Programmable Logic ChipExclusive technologies such as digital integrated circuits with self-constructed logic functions, clock management, 2nd PLL digital shaping, DOP demodulation, and PCM/DSD depop switch provide a solid foundation for excellent sound quality.
• GCLK-02 Clock ModuleThe design of this module allows it to use either a local clock source or an external 10MHz clock signal, providing users with a flexible clocking solution.In this way, the GCLK-02 is able to significantly reduce the impact of the front-end clock performance on the overall system performance, thus reducing the dependence on the performance of the front-end audio equipment.
• Analog LPF CircuitsDiscrete Class-A circuits are designed to provide a warm, natural sound with low distortion and noise, ensuring purity of sound and realistic feproduction of the music. By carefully selecting and matching components, precise processing of audio signals can be realized, thus enhancing overall sound performance.

Digital Input
LAN Support protocol: Roon, airplay, upnp, NAA, Spotify
(Configuration web page can be configured to open and close the protocol, can be upgraded online)
LAN speed 100/1000Mbps.
10M clock (BNC): Input impedance 50 Ohm, 0dBm- 20dBm, CMOS square wave 0.2V-3.3V, Sin wave0.5V-3.3V.

Analog Output
Frequency Response:20-20kHz/+-0.3dB
Dynmic Range:>128dB
Signal to Noise Ratio:>127dB
Channel Crosstalk:-132dB@ 10kHZ.
THD+ N:<=0.0001% @1kHz
IMD:0.001% @ -1dbfs
RCA output level: 2.5Vrms (VOLUME FIXED)
RCA output impedance:100
XLR output level: 5.1Vrms (VOLUME FIXED)
XLR output impedance: 100
XLR Interface Definition:American Standard
(1 ground, 2 hot, 3 cold)

Other parameters
Ac power supply: AC115V/230V 50/60Hz;
power consumption:<25W.
Dimensions:W330mm* D260mm*H65mm(excluding protrusions)
Package Dimensions:L420*W360*H175mm
Weights with package:7KG;
115V/220V(Manual Switch).
