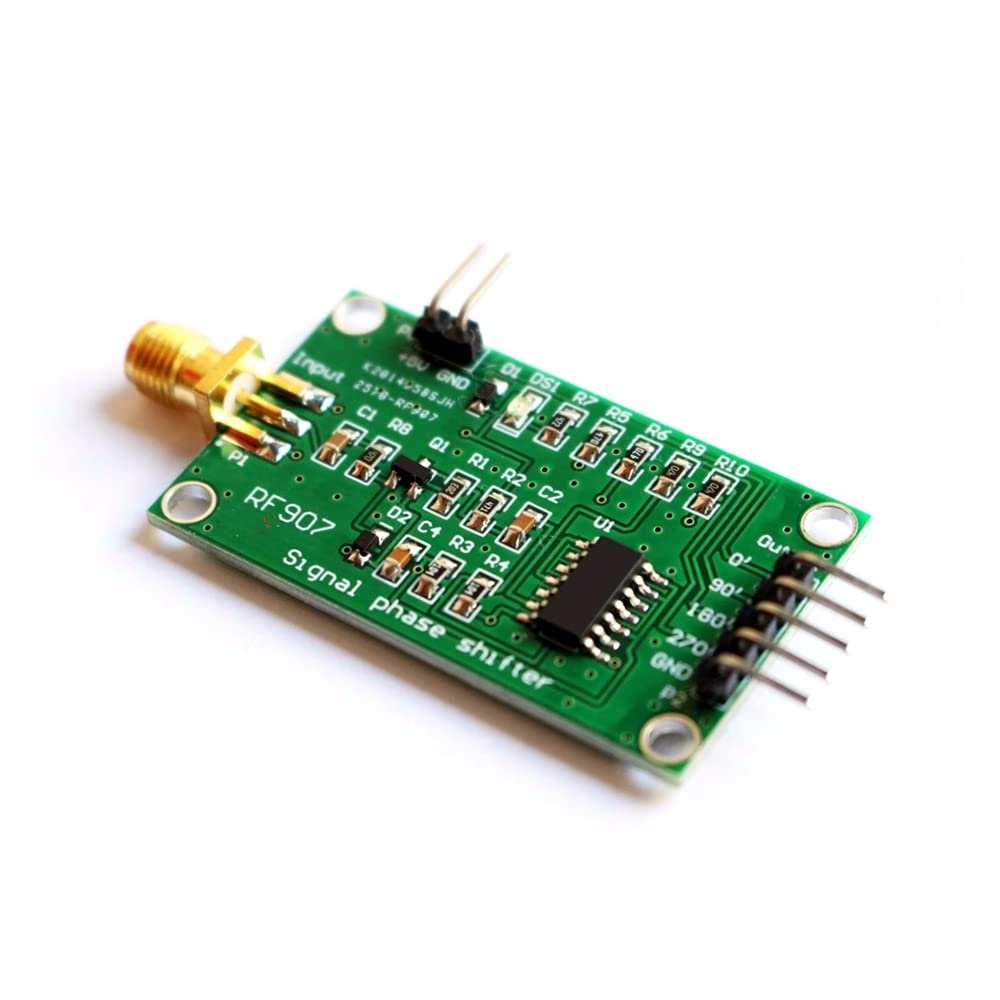

Jolooyo Digital Phase Shifter Module 50Hz60MHz

Description

• Working voltage: 5V
• Working current: <50mA
• Input voltage range: +/-0.1V~+/-5V
• Output voltage range: 5V
• Input frequency: 50Hz~60MHz

Module parameters
1. Working voltage: 5V
2. Working current: <50mA
3. Input voltage range: +/-0.1V~+/-5V
4. Output voltage range: 5V
5. Input frequency: 50Hz~60MHz
6. Output frequency: (50Hz~60MHz)/4
7. Application range: digital phase shifter design;
8. PCB size: (length) 45mm * (width) 25mm * (height) 10mm

Module interface:
P6: Power interface (5V).
P1: Pulse signal input (+/-0.1V~+/-5V).

P2: Pulse signal output interface.
0': Output pulse pulse with phase 0 degree.
90': Output pulse pulse with a phase of 90 degrees.
180': Output pulse pulse with phase 180 degrees.
270': Output pulse pulse with a phase of 270 degrees.
GND: negative pole of the power supply

Package1pc Digital Phase Shifter Module 50Hz~60MHz
