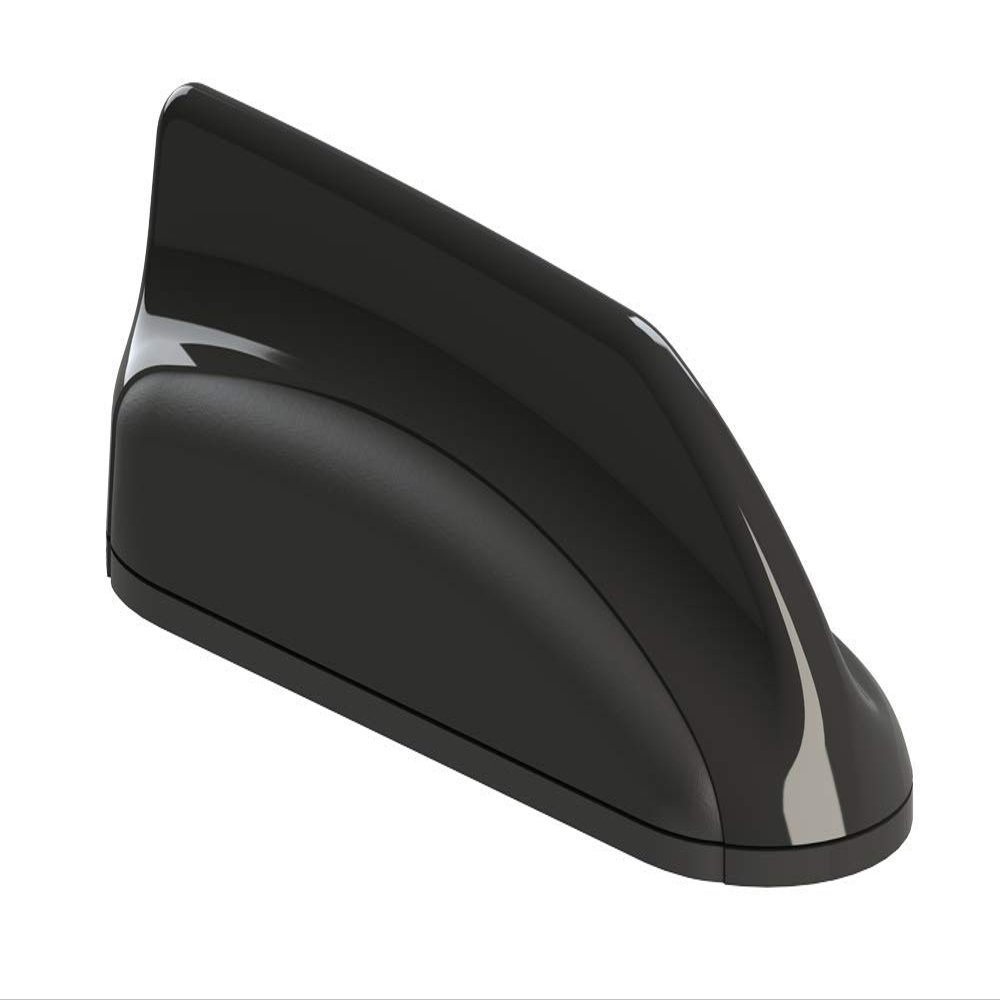

Mobile Mark MXFG402 MaxFin Multi-Band Antenna 4-in-1 Two LTE Cellular, one WiFi, one GNSS, Thread, SMA - Black (Mobile Mark Part # MXFG402-3C3C3C2C-BLK-180)

Description

• requency & Gain Cables 1 & 2 694-960 MHz, 0-3 dBi 1710-3700 MHz, 4 dBi Cable 3 2.4-2.5 & 4.9-6.0 GHz, 5 dBi Cable 4 1561, 1575, & 1602 MHz, LNA 26 dB, 5 dBi
• Standard Connectors SMA Plugs ( Male ) / Cables 1 - 3 LL-195, 15-feet ( 152 cm ),
• easuring 7.50 (19cm) in length, 2.25 (5.7cm) width, and 2.50 (6.4cm) tall the MXFG402 significantly takes up less space than multiple antennas.
• Mounting Thru Hole, Ground Plane Dependent
• IP Rating IP67 / Shock & Vibration IEEE1478, EN 61373, MIL-810G, TIA 329.2-C
• The GNSS element operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz. The MXF402 covers Cellular LTE frequencies from 694-3700 MHz.
• Mobile Mark Part # MXFG402-3C3C3C2C-BLK-180

The MXFG402 MaxFin antenna includes 4 cables providing two for Global LTE, one for WiFi, and one for GNSS antenna. The antenna elements all fit in this slim tapered radome that measures only 7 1/2 long x 2.25 wide by 2.5 tall (19 cm x 5.7 cm x 6.4 cm). The antenna housing contains a stylish combination of matte & polished finish, providing a sleek, high-tech look on the vehicle..
