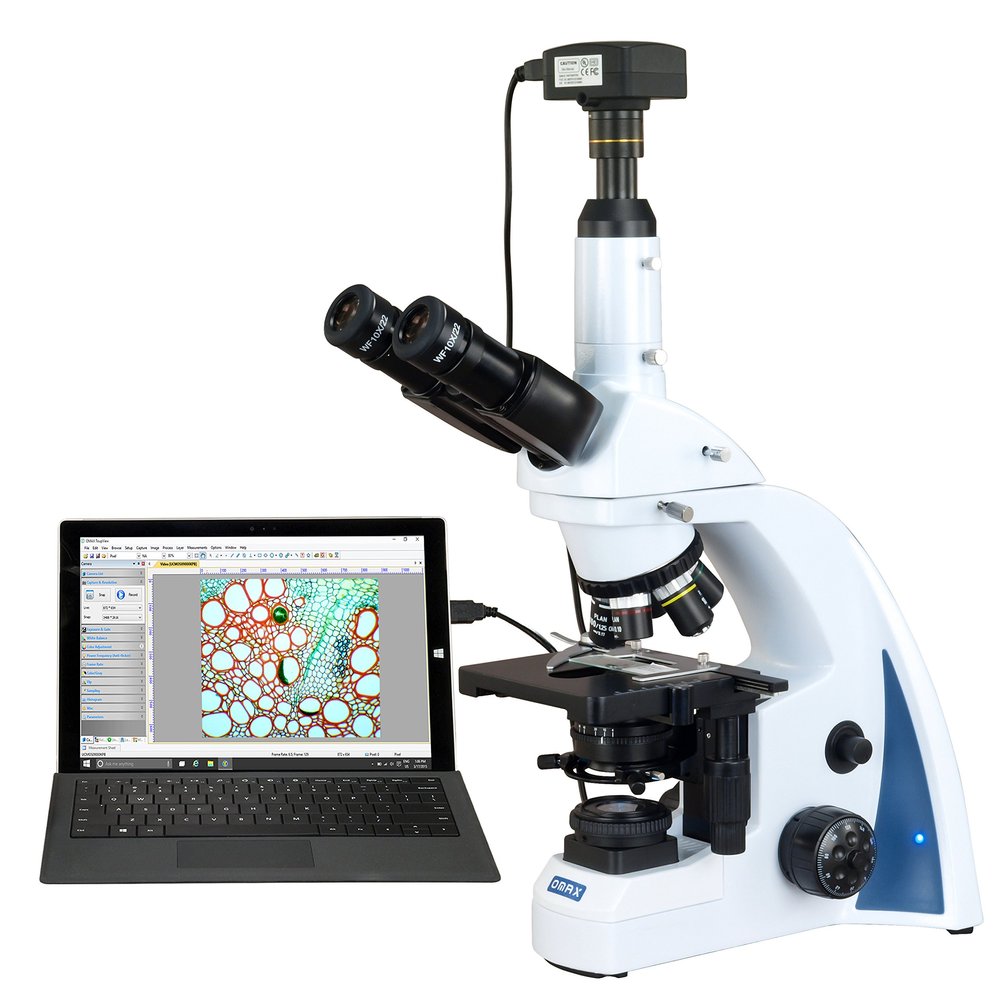

OMAX 40X-3000X 8MP USB3 Digital Infinity Plan LED Kohler Siedentopf Microscope w Quintuple Nosepiece

Description

• Total magnification: 40X-100X-120X-200X-300X-400X-600X-1000X-1200X-3000X: Eyepieces: focusable WF10X/22 and WF30X: Objectives: PLAN infinity 4X/0.10 /-, 10X/0.25 /0.17, 20X/0.40 /0.17, 40X/0.65 /0.17 (spring), 100X/1.25 /0.17 (spring, oil): Viewing head: trinocular Siedentopf 30 degrees inclined, 360 degrees rotatable; Adjustable photo tube: Interpupillary: adjustment 2-3/16inch~2-15/16inch (55mm-75mm)
• Total magnification: 40X-100X-120X-200X-300X-400X-600X-1000X-1200X-3000X: Eyepieces: focusable WF10X/22 and WF30X: Objectives: PLAN infinity 4X/0.10 /-, 10X/0.25 /0.17, 20X/0.40 /0.17, 40X/0.65 /0.17 (spring), 100X/1.25 /0.17 (spring, oil): Viewing head: trinocular Siedentopf 30 degrees inclined, 360 degrees rotatable; Adjustable photo tube: Interpupillary: adjustment 2-3/16inch~2-15/16inch (55mm-75mm)
• Total magnification: 40X-100X-120X-200X-300X-400X-600X-1000X-1200X-3000X: Eyepieces: focusable WF10X/22 and WF30X: Objectives: PLAN infinity 4X/0.10 /-, 10X/0.25 /0.17, 20X/0.40 /0.17, 40X/0.65 /0.17 (spring), 100X/1.25 /0.17 (spring, oil): Viewing head: trinocular Siedentopf 30 degrees inclined, 360 degrees rotatable; Adjustable photo tube: Interpupillary: adjustment 2-3/16inch~2-15/16inch (55mm-75mm)
• Diopter: adjustable on left eyepiece tube: Nosepiece: reversed revolving quintuple nosepiece: A lever to switch between beam spilt for photo port and 100% to eyepieces when photo tube is not in use: Stage: Double layer X-Y mechanical stage with scales, size 180mmx130mm (7-1/8inchx5-1/8inch), translation range 78mmx46mm (3inchx1-13/16inch): A specially designed back slot on the microscope stand for easy hand holding and carrying
• Illumination: transmitted, kohler,LED lamp, intensity adjustable: Focus: coaxial coarse and fine focus knobs on both sides with tension control: Stage upward stopper protects objective and slides: Condenser: NA1.25 condenser with iris aperture diaphragm, condenser center adjustable: Color filters: green and blue, 44.8mm in diameter, for transmitted light; Power supply: AC 100-240V, 50/60Hz, US and Canada plug version
• Digital camera: - true color 3328x2548 pixels (8M pixels) - Super speed USB 3.0 connection - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 8.3fps at 3328x2548, 26.2fps at 1664x1272 - Software compatible with Windows, Mac OS X and Linux operating systems - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB 3.0 cable included
• 5-year warranty against manufacturing defects

This superior quality OMAX microscope is designed for advanced life science research and includes a super speed 8MP USB 3.0 digital microscope camera. The advanced microscope features a five high quality PLAN infinity achromatic objectives [4X, 10X, 20X, 40X(s), 100X(s,oil)], siedentopf trinocular viewing head with adjustable photo tube, body frame, reversed revolving quintuple nosepiece, large double layer mechanical stage with scale, brighter, whiter, and more even illumination due to LED variable intensity kohler light system and advanced NA1.25 condenser with iris control for incredible light control. The microscope also features super wide-field focusable eyepieces (WF10X/22 and WF30X), and the microscope offers ten level magnifications from 40X to 3000X. The 3328x2548 pixels USB 3.0 digital imaging system that captures still microscope images and live video on computer. The included software is compatible with Windows, Mac OS X and Linux operating systems (see version information below). The Windows software can also be used to make measurements. This microscope is ideal for clinical offices, veterinary labs, and research labs.
