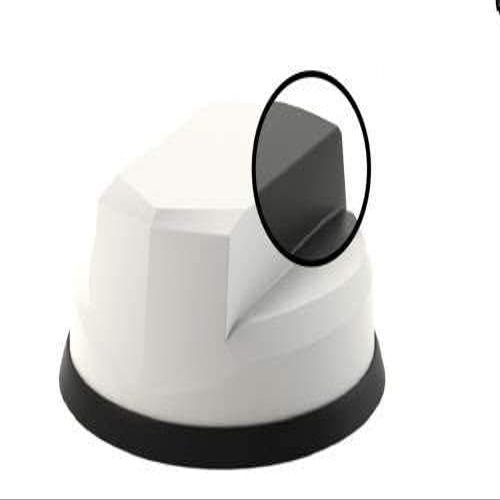

Panorama Antenna 7-in-1 LG-IN2458 | 2x2 MiMo LTE 5G/4G/3G/2G | 4x4 MiMo WiFi | GPS/GNSS | Thread Bolt | 5m (17') | SMA | (White)

Description

• Low profile antenna with 7 functions in 1
• 2x2 MiMo 4G/5G LTE cellular, 4x4 MiMo Dual Band WiFi and GPS/GNSS in one housing
• Frequency and Gain: 4G/5G Elements: 617-960MHz 5dBi, 1710-3800MHz 9 dBi & 4900-6000MHz 10 dBi / WiFi Elements: 2.4GHz 8 dBi & 4.9-6.0GHz 10 dBi / Element GNSS; 1562-1612 26dB
• Cable Type and Length: | Cell/WiFi: CS32 (UN118.03 / EN45545-2 Compliant), 5m (17'), SMA (m) and RP-SMA (m) | GNSS: FR CS29 (UN118.03 / EN45545-2 HL2 Compliant, 5m (17'), SMA (m)
• Radome which meets IK10 for vandal resistance and IP69K for ingress protection
• Mounting type: Panel mount, Max panel thickness (mm) 7 (0.27) Mounting hole (mm) 19 (3/4)

The LG-IN2458 range has been designed to provide 2x2 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and 4x4 MiMo WiFi 2.4/5.0GHz.
The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.
