Panorama Antenna for CradlePoint - SH-IN2440-W 5-in-1 MiMo Sharke 2x2 2G/3G/4G, GPS/GNSS, 2x2 MiMo WiFi White Thread SMA

Description

• 2x2 Cellular / LTE: 698-960/1710-2170, 2500-3800MHz, CS23 (RG58 C/U) 5m (17') 1x SMA (m)
• 2x2 MiMo WiFi: 2.5 / 4.9-6.0GHz CS32 (UN118.03 / EN45545-2 Compliant) 5m (17')2x Rev Pol SMA
• 1x GPS/GNSS: 1562-1612MHz CS23 (RG58 C/U) 5m (17') 1x SMA (m)
• Mounting Type: Panel Mount Mounting Method18mm (3/4") Mounting Bush Whip MountingM6x0.75
• IP RatingIP66 / Flame Retardancy: UN118.01 Compliant

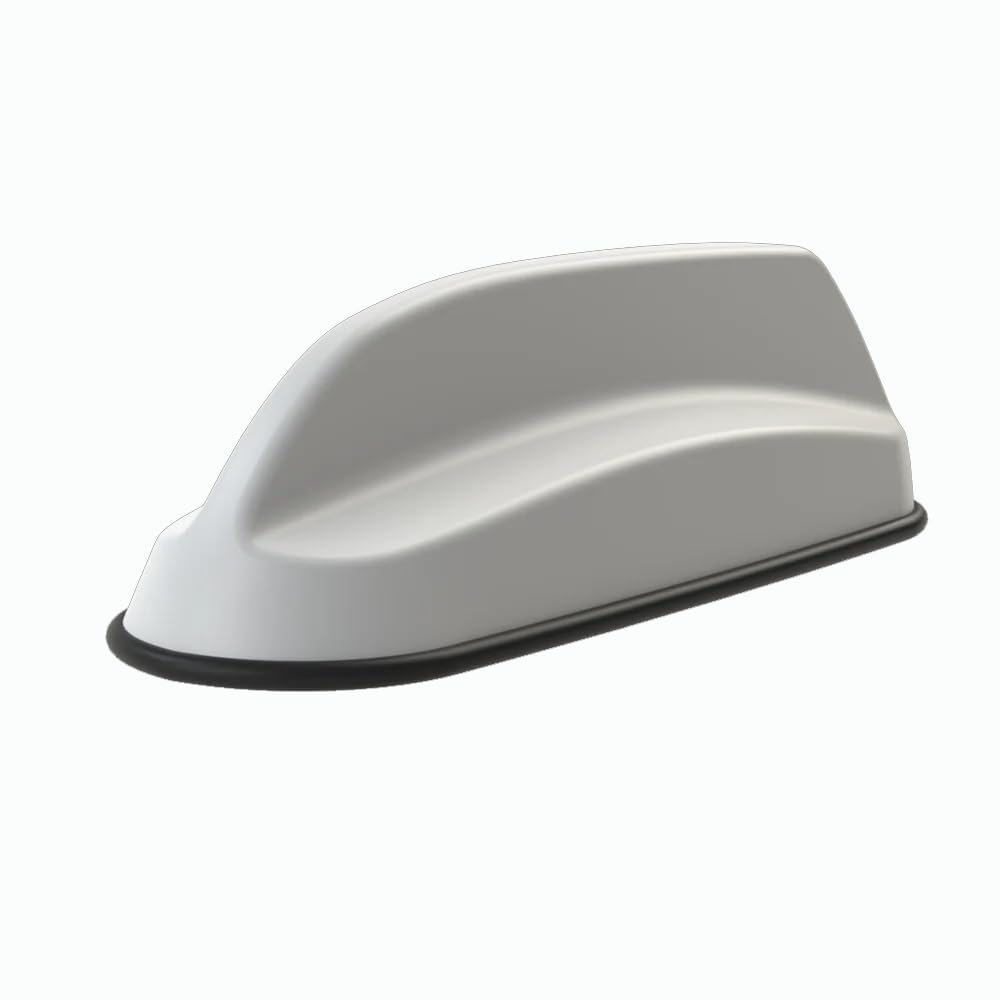

The GPSD 'MiMo Sharkee' has a compact OEM style shark fin housing that contains 2x2 MiMo antenna function for 4G/3G/2G & 3.8GHz 5G LTE, 2x2 MiMo antenna function for 2.4/5.8GHz WiFi and an active antenna for GPS/GLONASS/Galileo/Beidou with 26dB gain LNA. In addition, there is an integral stud mount for an external antenna whip that can support a range of VHF, UHF or 700/800MHz antennas.

The GPSD shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost and visual impact whilst protecting a vehicles resale value.

IN2440 also contains a complete set of 5 extension cables; two 5m low loss double sheilded cables terminating in SMA plugs for cellular / LTE, two 5m ultra-low loss double shielded cables terminating in reverse polarity SMA plugs for WiFi and a 5m CS23 cable terminating in an SMA plug for GPS/GNSS.
