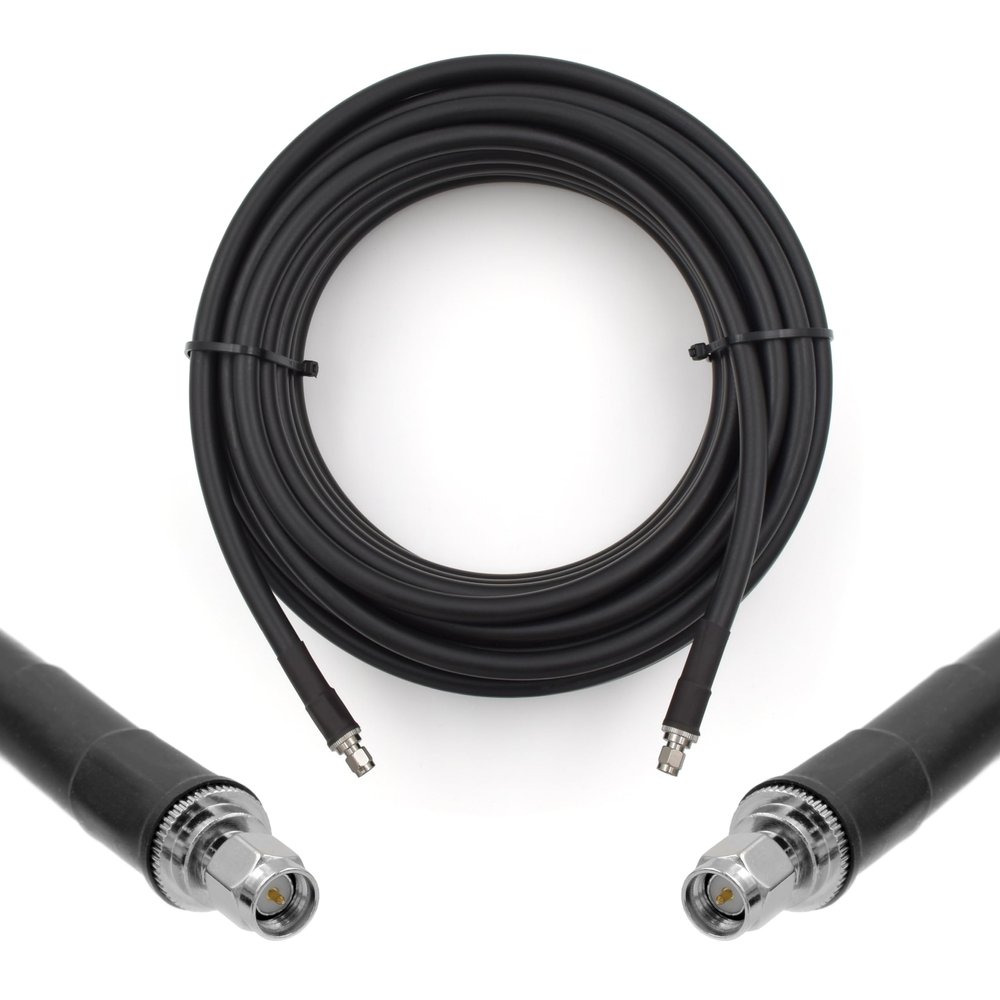

RANGEFUL SMA Cable 15m 49.2ft Ultra Low Loss Coax Cable 8D-FB 11.1mm Extension Lead Black SMA Male to SMA Male Coaxial 50ohm

Description

• SMA Male to SMA Male Professional HF cable made in accordance with fire protection requirements (LSZH jacket). Supported frequencies from 0 to 6Ghz. Cable type: 8D-FB; Conductor Material: CCA; Cable length: 49.2ft 15m; Impedance: 50 Ohm
• Double wall heat shrink tubing with adhesive is used, for better protection against moisture, as well as more secure attachment of the connectors.
• This coaxial cable is suitable for connecting a 4G 5G Antenna, WIFI adapter, WIFI router, WIFI antenna, 4G Router, WIFI card.
• Extension Cable Technical Details: Conductor CCA, 2.80 0.02 mm, Insulation PE foam, 7.80 0.10 mm, Binder/Braid Shield AP+AA, 8.80 0.10 mm, Jacket Black, LSZH, 11.1 0.15 mm
• Ultra Low Loss: The 8D-FB extension cable has similar size as the LMR400 cable. A larger cable means a much larger center conductor and supports better signal transmission for wireless WIFI router or LTE internet modem and higher frequencies up to 6Ghz. 40% lower signal attenuation than LMR240 and 3 times lower signal attenuation than RG58.

SMA Male to SMA Male Low Loss 8D-FB Coaxial Cable
Double Shielded with Black LSZH Jacket
Length: 15 meters (49.2 ft) Application
Widely used with Antennas, Routers, Radio Scanners, Modems, Car Transmitters, CB Radio, Wi-Fi Radios, GPS antennas, various RF devices, Wireless LAN Devices, Testing equipment etc. Features
Indoor/Outdoor use. Semi-Flexible UV-protected black LSZH jacket.
Solid CCA Conductor and Tinned Copper Braided Shield for best-in-class data transmission with minimal attenuation.
Double-wall shrink tubing with adhesive layer for better protection of connectors from moisture.
Assembled in EU, fully tested and packed. Full compliance with European standards CE, RoHS, REACH, UL 94. Specifications
Cable Type: 8D-FB
Center Conductor Type: CCA (1 Strand)
Impedance: 50 Ohm
Frequency Range: DC-6GHz
V.S.W.R: 2
Capacitance: 81.5 pF/m
Dielectric Type: PE
Jacket Material: LSZH
No. of Shields: 2 (Aluminium foil + Tinned Copper Braid)
Operating Temperature: -25 to +70 deg C
Mechanical Specifications
Diameters: 11.10 mm
Inner Conductor: 2.80 mm
Dielectric: 7.70 mm
Second Shield: 8,80 mm
Bending Radius: 111 mm
Attenuation dB/m:
100Mhz: 0,039
400Mhz: 0,084
900Mhz: 0,145
1800Mhz: 0,223
2500Mhz: 0,275
3000Mhz: 0,312
Certification
Full compliance with European Standards.
CE: EN50117-1:2002, EN 50289-1-6:2002; RoHS; REACH; ECE R118, Revision 1 - Amendment 2, 2016; ISO6772; UL 94-2013 Section 8.
