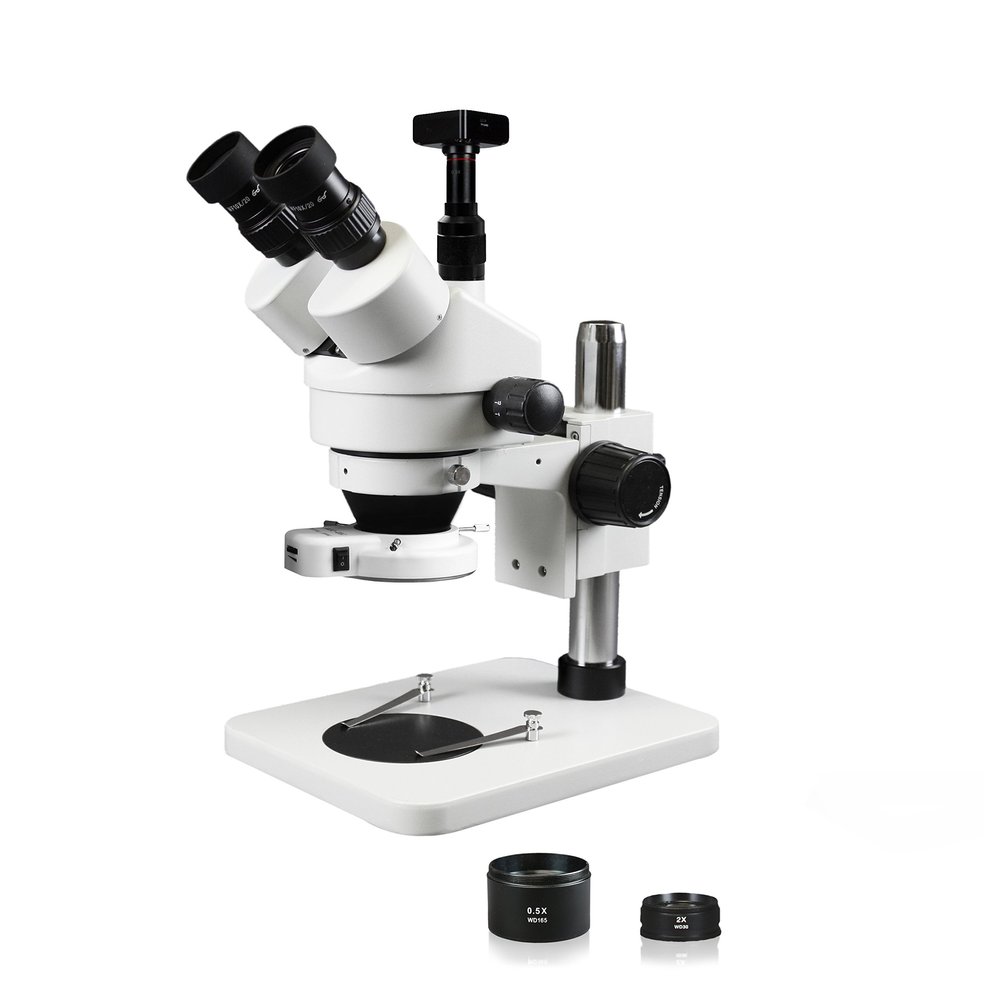

Vision Scientific VS-1AFZ-IFR07-5607NS Simul-Focal Trinocular Zoom Stereo Microscope, 10x Widefield Eyepiece, 0.7X-4.5X Zoom Range, 7x-45x Magnification Range, Pillar Stand, 16MP Digital Camera

Description

• 45 inclined trinocular head that rotates 360. The trinocular port allows you to connect a digital camera or an HD touch screen. It features a 54-76mm interpupillary adjustment, while both ocular tubes are equipped with a (+/-6) dioptre adjustable, to compensate for eye-strength difference when needed
• 7x45x standard magnification range, that when used with the included 0.5x & 2x auxiliary lens, expands to a 3.5x90x magnification range
• 16 MP Camera allows you to stream high-resolution images of the specimen. Support HDMI and USB interface. It can control with provided remote controller. Includes user friendly imaging software
• Pillar stand offers a long and flexible working distance. The black and white reversible stage plate provides a contrasting background for the specimen, while the stage clips secure it in place
• Heavy and stable support arm with a lock-screw to position the 360 rotatable optical body, which also adjusts up-and-down on the vertical post stand. Precise, heavy-duty rack and pinion focusing mechanism, with large knobs and adjustable tension control
• 144-LED ring light with intensity control, guarantees a clear-and-crisp, cool-to-touch white light that lasts up to 60x longer than traditional tungsten bulbs

The trinocular zoom stereo microscope is ideal for laboratory, industrial or medical applications. Using its high resolution, great depth, and a large field of view, The instrument for viewing any three-dimensional or temperature-sensitive specimen or object. The compact, thin design of the large base provides added comfort for the user and allows sample positions to remain low, which provides easy accessibility to variable light controls.
Product Specifications Head: Trinocular, 45 inclined, rotates 360 Eyepiece: 10x WF / 20mm high eye point Zoom Range: 0.7x4.5x, 1:6.4 zoom ratio Magnification Range: 7x45x, 3.5x90x with the 0.5x & 2x auxiliary Lens Working Distance: 100 mm standard, optical working distance can be increase or decrease 30-165 mm with auxiliary lens Stage: Black & white reversible stage plate with a pair of stage clips Stand: Pillar stand Light Source: 144-LED ring light with intensity control
Camera Specification 16 Mega Pixels, 1/2.5 inch progressive scan image sensor Can control with IR remote control Brightness, contrast, saturation, sharpness and gamma software are adjustable USB, HDMI Interface Maximum resolution 1920*1080@60FPS for Video Reticle- 4 types, able to adjust color,size,shift and hide Support Windows 2000/XP2/Vista/Win7/Win10 operating system
Packing list Trinocular zoom stereo microscope head Pair of 10x WF eyepieces Pillar stand Focusing arm Pair of eye guards One dust cover User manual 5x and 2x auxiliary lens 144-LED ring light Power adaptor 16MP Digital Camera, One 0.5X C-mount Lens, USB Cable, Remote controller & CD with Software
